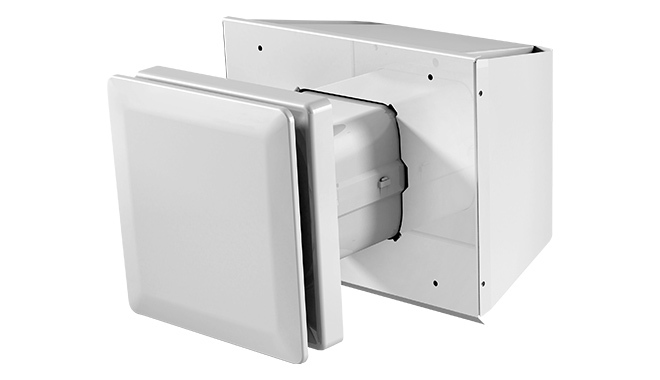

VLR 70 S
- Up to 92% heat recovery
- Decentralised ventilation - suitable for new builds and renovations
- Supplies fresh air from outside to in your home or office
- Compact fan ensures easy inspection and maintenance
- Quiet operation
- Installed in pairs, connect up to 8 units together
Product Overview

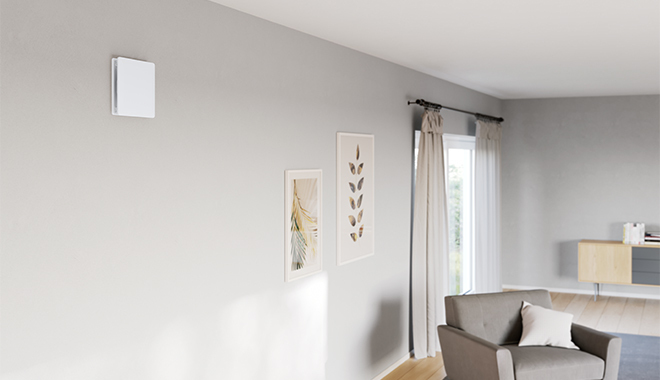

Create a pleasant indoor environment in the home with the VLR 70 S decentralised heat recovery ventilation.
Installed in pairs with ducting through the walls, the VLR 70 S has a heat recovery level of up to 92%.
Available at:
Product Details
Application
The VLR 70S decentralised ventilation unit with heat recovery is used for ventilating apartments and small commercial properties.
Convenience features
- Contemporary design with a separate programming unit.
- The appliance is suitable for living spaces and commercial premises up to approx. 100 m2.
- Thanks to the axial fan that can overcome back-pressure, use in locations exposed to the wind is possible.
- The appliance is equipped with an efficient heat exchanger made of aluminium.
- The stainless steel, powder-coated external hood is watertight against heavy rain
- The VLR 70S features a straightforward filter replacement with an easy-to-remove fan unit.
- Fine dust (F7) filters are available as accessories.
Efficiency
EC fan ensures efficient operation.
Installation
- The unit is installed in a round or square wall outlet
- The easily accessible mains connection is located on the inside of the fan unit.
Technical Data
| Model number | VLR 70 S Trend |
| Power consumption | 7 W |
| Rated voltage | 24 V |
| Max. current | 0.3 A |
| Air volume flow | 20-70 m3/h |
| Filter class | ePM1 ≥ 50 % (F7) | ISO Coarse > 30 % (G2) |
| Min. outlet aperture diameter | 200 mm |
| Wall thickness | 100 - 300 mm |
| Sound power level | 35 dB(A) at 20 m3/h |
| Height | 285 mm |
| Width | 360 mm |
| Depth | 590 mm |
| Weight | 5.2 kg |
