IW 120

  • Infrared quartz radiant heater with 1.2 kW heating output
  • Pleasant radiant heat for indoors or protected outdoor areas
  • Choice of three heating stages (0.4/0.8/1.2 kW)
  • Easy to adjust and operate
  • High quality metal casing
Ask Quick Question

Product Overview

Make truly flexible use of your heater
Add extra warmth to your everyday life with this quartz radiant heater. The appliance brings your room up to temperature quickly and precisely. You can feel its radiant heat almost as soon as you switch it on.

Don’t restrict your heating to just one place
The heater is practical in your bathroom, for example, to give you a nice warm start to the day. And what about when you want to relax on the patio in the evening as the day draws to an end? Here, too, the quartz radiant heater is your ideal companion.

Available at:
Or your local plumbing/electrical supply store.

Product Details

Application
This radiant heater is suitable for heating small rooms. The appliance gives off noticeable warmth immediately without any air movement. It is particularly suitable for bathrooms, recreational rooms or wind-sheltered, covered verandas.

Convenience features
The pivoting highly polished reflector is equipped with quartz immersion heaters. It is operated by a pull cord.

Installation
Easy wall mounting with direct electrical connection.

Technical Data

Model number IW 120
Rated output 1.2kW
Power supply 1/N/PE ~ 230 V
Rated current 5.2 A
IP Rating IP X4
Height 145mm
Width 535mm
Depth 85mm
Weight 1.55kg
Colour silver
Installation type Indoor/outdoor installation

Downloads

File Category Type Download
IW 120 Operation and Installation Guide Operation and Installation Guide PDF
3.45 MB

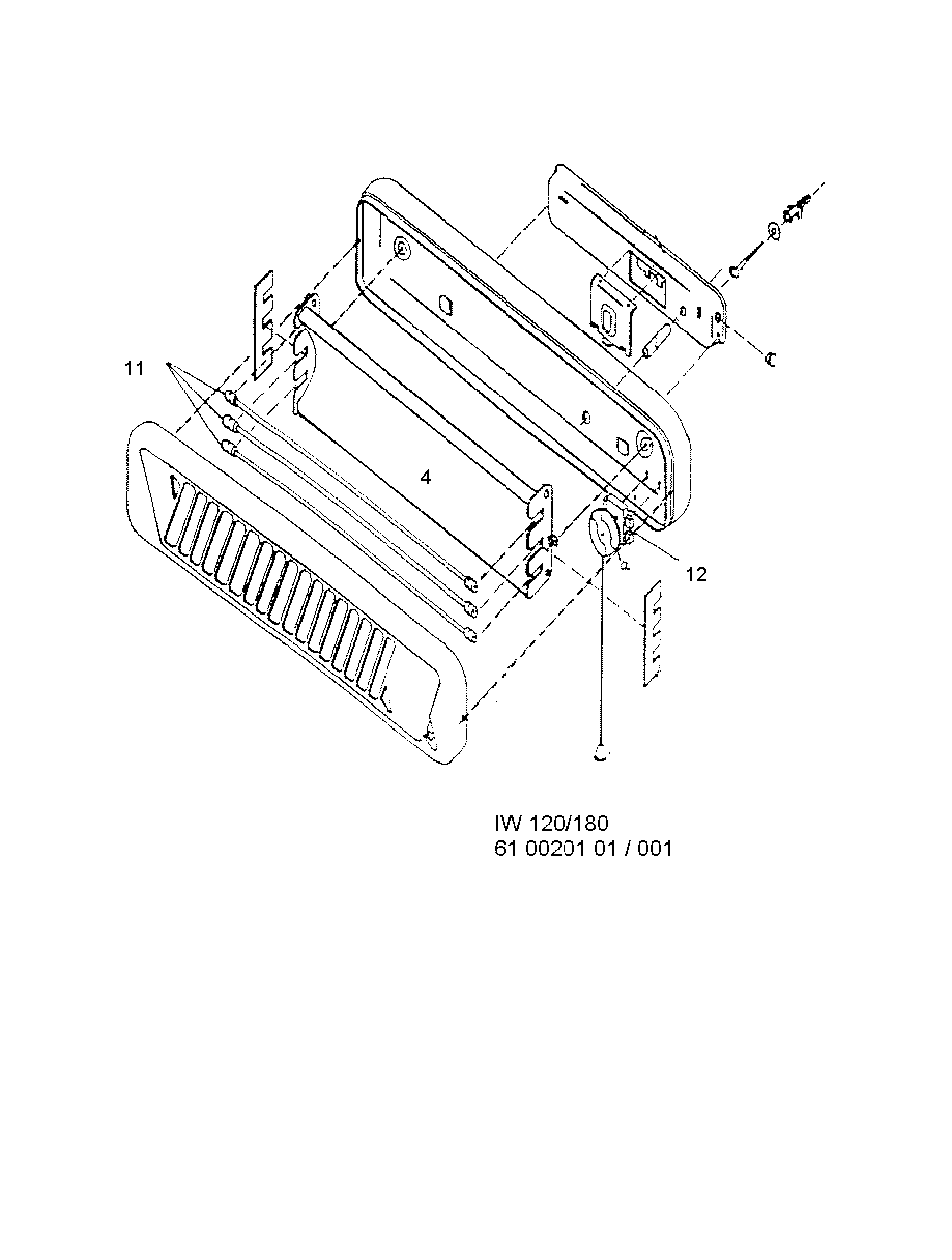

IW 120 Exploded Diagram Exploded Diagram PNG
26.58 KB

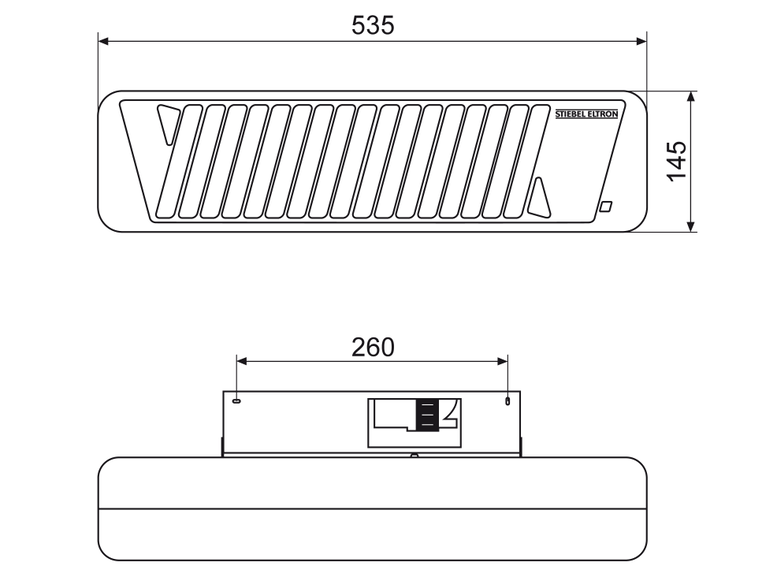

IW 120 Minimum Spacing Technical Drawing PNG
76.52 KB
IW 120 Data Sheet Data Sheet PDF
721.17 KB
Bathroom Heaters Warranty Warranty PDF
310.18 KB
