CNS Trend M
- Wall mounted convection electric heater
- Modern, slimline design
- Quiet, even heat distribution

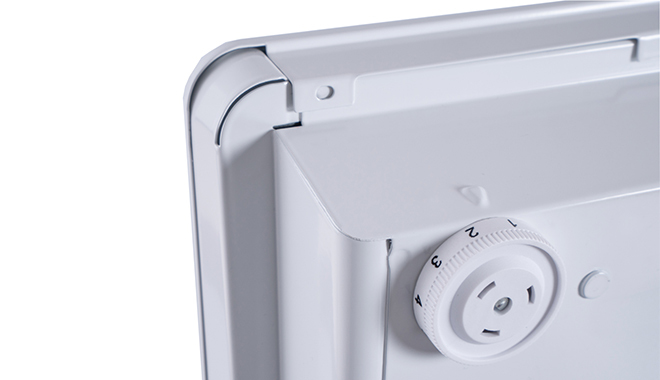

- Variable temperature selection
- Easy wall mounted installation
Product Overview

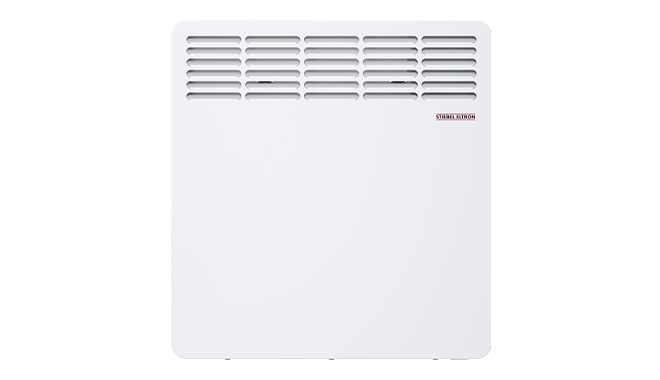

The CNS Trend M electric panel heater looks the part in any room thanks to its slimline, modern design. Available in three sizes, all heaters in the range are compact at only 10cm deep but generate great levels of heating comfort. These robust units offer variable temperature selection from 5°C to 35°C, and they heat immediately and quietly with steady radiant heat.
Available at:
Or your local plumbing/electrical supply store.
Product Details
Technical Data
| Model number | CNS 100 Trend M | CNS 150 Trend M | CNS 200 Trend M |
| Output | 1.0kW | 1.5kW | 2.0kW |
| Current | 4.2A | 6.3A | 8.3A |
| Connection | 1/N/PE ~ 240V | ||
| Temperature adjustment | 5 – 35 °C | ||
| IP rating | IP24 | ||
| Width | 426mm | 582mm | 738mm |
| Height | 450mm | 450mm | 450mm |
| Depth | 100mm | 100mm | 100mm |
| Weight | 4.6kg | 6.0kg | 7.7kg |
| Installation | Wall mounted | ||
| Colour | Alpine white | ||
Downloads
FAQ
How many sizes are available in the CNS Trend M convection wall mounted panel heater?
The CNS Trend M wall-mounted panel heaters are available in three sizes, which can suit rooms from 10m2 up to 20m2. As a general guide for sizing a heater to a room: 1kW output heats up to 10m2.
